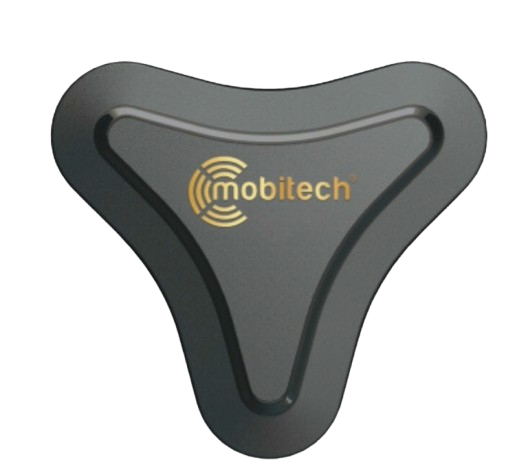

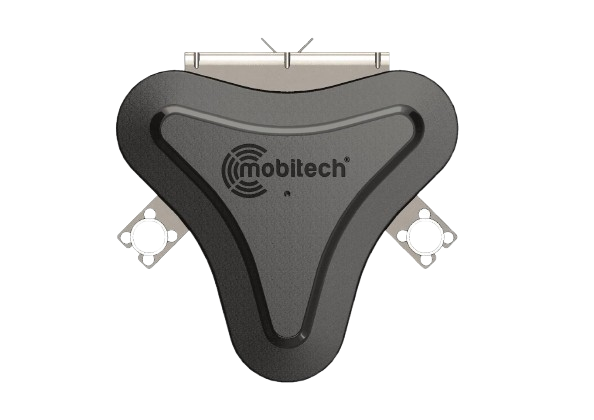

Dcon Ag

AIR

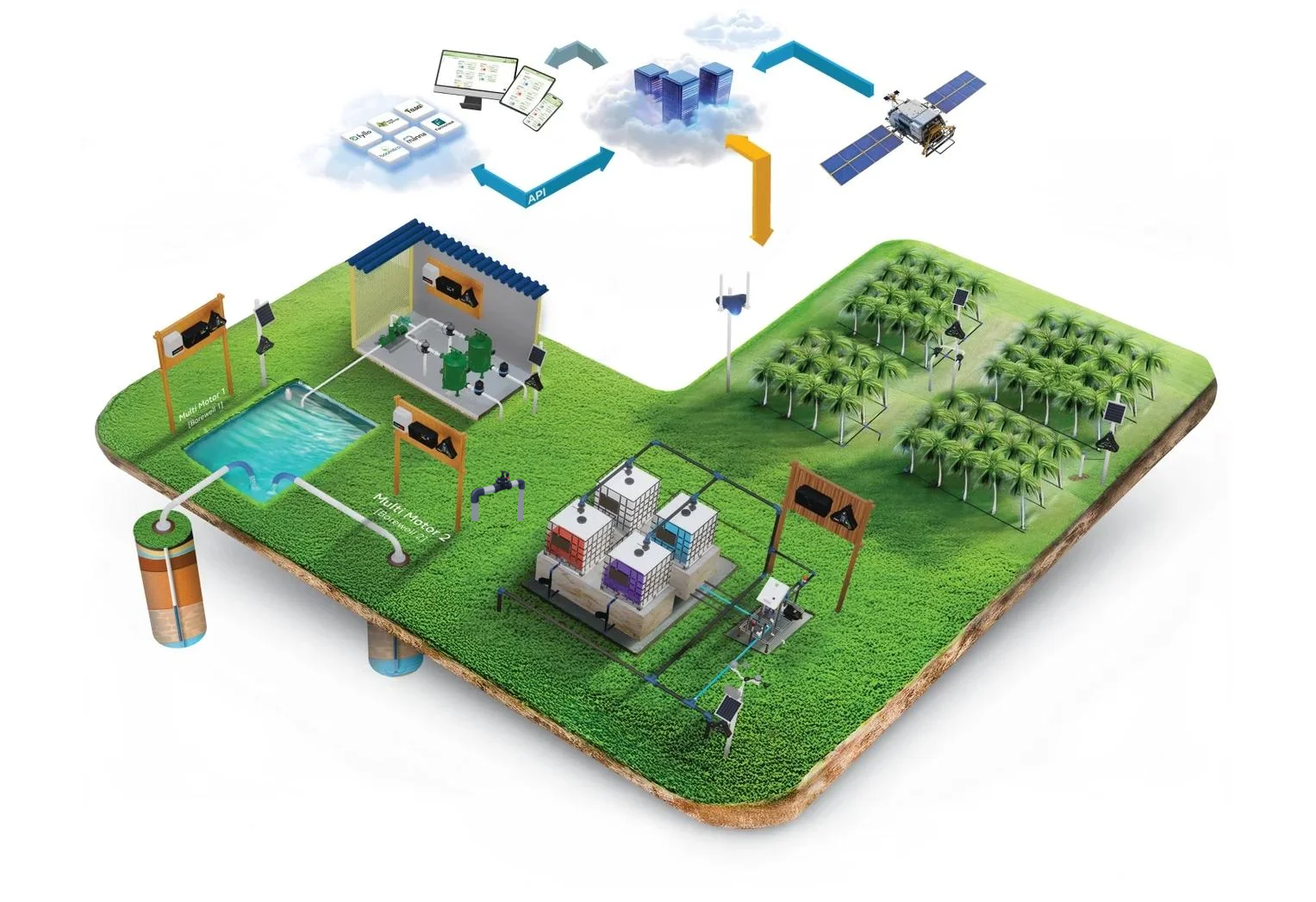

The Dcon Ag AIR unit operates, monitors, and manages multiple agricultural processes like pumpsets, fertigation, solenoid valve control, weather stations, soil moisture and reservoir water level. It can handle various input and output combinations. Mesh network technology links field units, with one unit acting as a bridge to the cloud.

BENEFITS & FEATURES

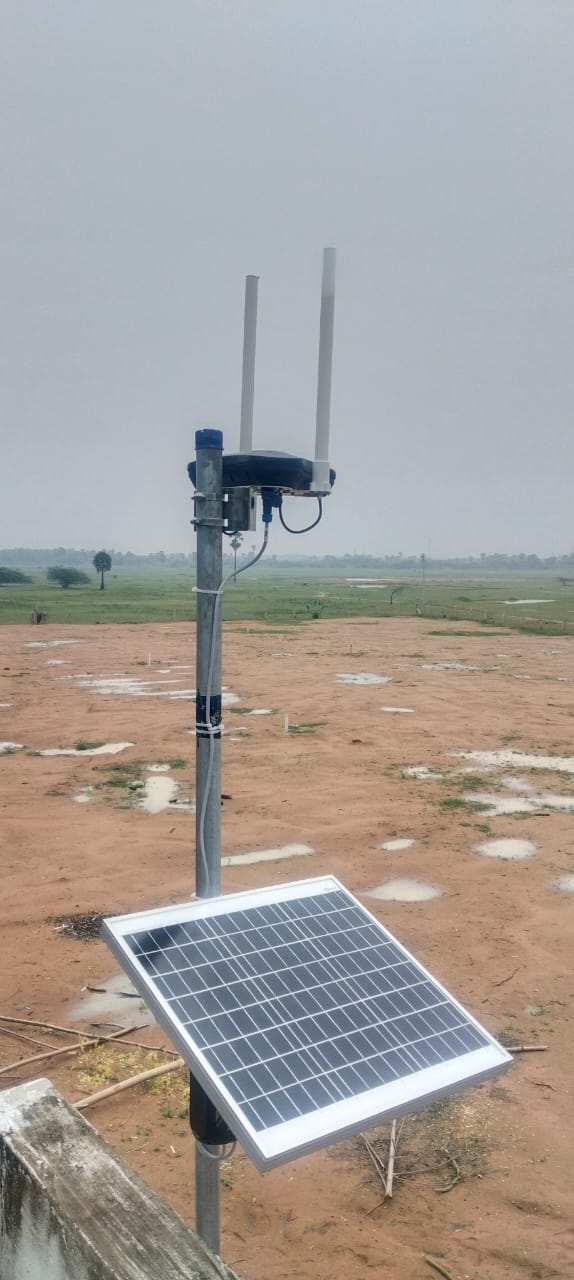

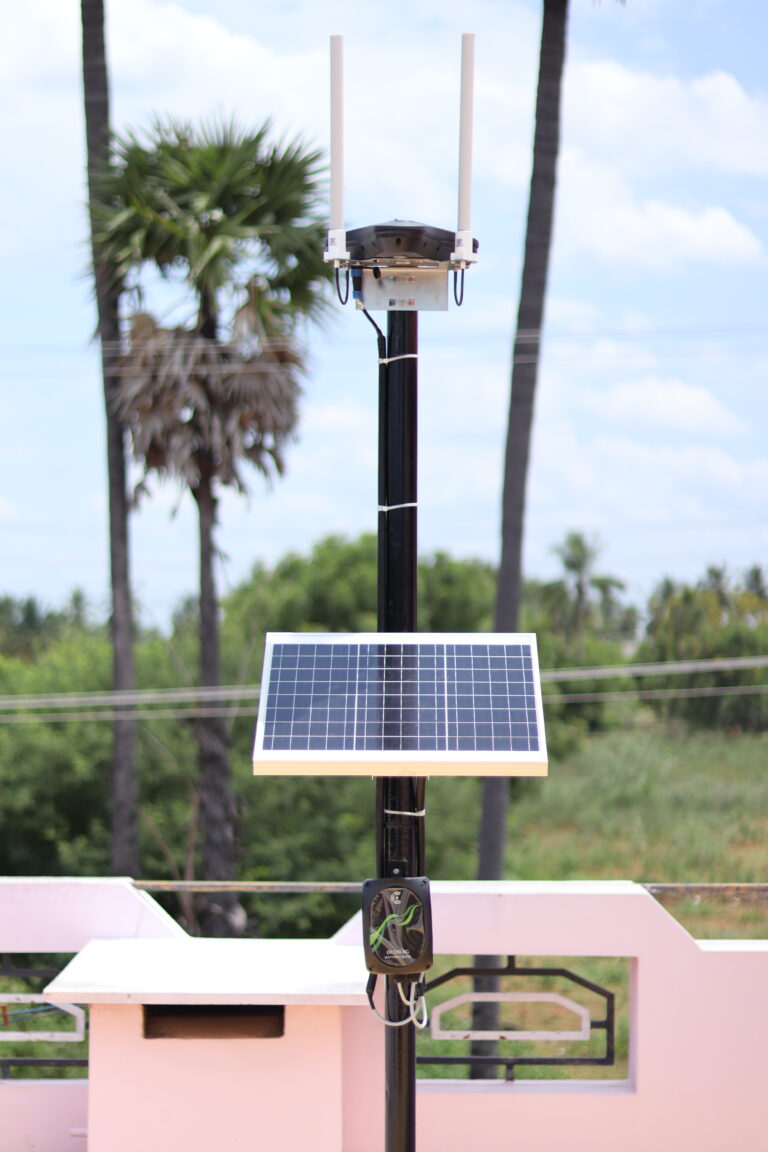

  • Solar-Powered Operation

    Runs continuously with solar panel for 24/7 functionality.

  • Robust Battery Backup

    Withstands up to 72 hours in cloudy conditions.

  • 4G/LTE Cellular Connection

    Provides seamless cloud connectivity for synchronization and remote monitoring.

  • Dual Channel LoRA Technology

    Utilizes separate channels for pumpset control and field monitoring.

  • Cloud-Based and Local Control

    Enables scheduling and management options both locally and via cloud.

SPECIFICATIONS

Solar Panel – 12.5V/40W

Battery Bank – 7.4V/ 15Ah

Internal Storage – 1 Year Log

Internal battery – 3.7V/15Ah

Backup time – 72 hours

Inbuilt GPS

Cloud communication – 4G/ Wifi

Local Communication – LoRA (2 band) & BLE 5.0
